Field Settings

Estimated reading: 5 minutes 63 views

Overview

The Field Settings menu is used to configure protection settings for database fields. This menu allows administrators to select a connection, browse available schemas and tables, view table columns, and assign protection templates to specific fields.

Field-level protection is used to determine how OneDB handles sensitive data, such as whether a field should be masked, processed with a masking template, or left without protection.

Access Field Settings Menu

To access this page, go to:

Database Server > Field Settings

The Field Settings Management page displays the list of available database connections.

Field Settings Management

The first page displays the available connections that can be configured for field-level protection.

Column	Description
Connection Name	The name of the configured database connection.
Database / Schema	The database or schema associated with the connection.
Database Type	The database engine type, such as MySQL, PostgreSQL, Oracle, or MSSQL.
Action	Opens the field settings page for the selected connection.

To configure field protection for a connection, click the action icon on the selected row.

Select Connection

After selecting a connection, the system displays the field settings page for that connection.

The page shows the selected connection name and database type.

Example:

Connection Name : postgresql-local / POSTGRESQL

From this page, administrators can filter database objects by schema and table.

Select Schema or Database

Use the Schema / Database dropdown to select the schema or database that contains the table to be configured.

Example schema options:

information_schema
pg_catalog
public

After selecting a schema or database, OneDB loads the available tables under the selected schema.

When the data is loaded successfully, a notification will be displayed:

Data has been loaded!

Select Table

After selecting the schema or database, use the Table dropdown to select the table that contains the fields to be protected.

Once the table is selected, OneDB displays the list of columns available in the selected table.

The field list includes the following information:

Column	Description
Table	The table name where the field belongs.
Column	The column or field name.
Type	The database column type.
Protection	The protection setting assigned to the field.

Configure Field Protection

The Protection dropdown allows administrators to assign a protection template to each field.

The available protection options are populated from the templates that have been configured in the Template menu.

Protection Option	Description
No Setting	No protection template is applied to the field.
Direct Masking	Replaces the entire returned field value with a masking pattern while preserving the original database value.
`<template_name>`	Applies the selected protection template to the field.

Example template options may include:

App_With_Masking
App_With_Masking_Regex
App_Without_Masking

Select the appropriate template for each field that requires protection.

Example:

Table  : users
Column : username
Type   : varchar
Protection : App_With_Masking

Suggested note:

Protection templates must be created in the Template menu before they can be selected in Field Settings.

Save Field Settings

After selecting the protection template for the required field, OneDB automatically saves the configuration or saves it after the selected protection is applied, depending on the system behavior.

When the data is saved successfully, a notification will be displayed:

Data has been saved!

Click OK to close the notification.

Direct Masking

The Direct Masking template forces the selected field to always return a masked value when data is accessed through OneDB.

Unlike encryption, tokenization, or format-preserving protection methods, Direct Masking does not perform any cryptographic operation and does not modify the underlying database value. Instead, OneDB replaces the field value with a masked representation before the result is returned to the client.

Because no encryption or decryption algorithm is executed, Direct Masking introduces minimal processing overhead and is suitable for high-performance environments.

The original data remains unchanged in the database.

Example direct masking

Original data stored in database:

Username	Credit Card	Email
Adam	4111111111111111	adam@onedbsecurity.com

Returned through OneDB:

Username	Credit Card	Email
Adam	****************	**********************

The number of masking characters always matches the original value length.

This behavior prevents disclosure of the actual content while maintaining consistent field formatting and application compatibility.

Performance Characteristics

Direct Masking introduces minimal processing overhead because:

No encryption algorithm is executed
No decryption operation is required
No token lookup is performed
No regular expression masking engine is invoked

The masking operation simply generates a replacement value consisting entirely of masking characters with the same length as the original data.

As a result, Direct Masking is typically the fastest protection method available in OneDB.

Typical Use Cases

Direct Masking is recommended for fields that should never be revealed to end users, including:

Password hashes
API Keys
Access Tokens
Secret Keys
Authentication Tokens
Internal Security Identifiers
Cryptographic Fingerprints
Sensitive System Configuration Values

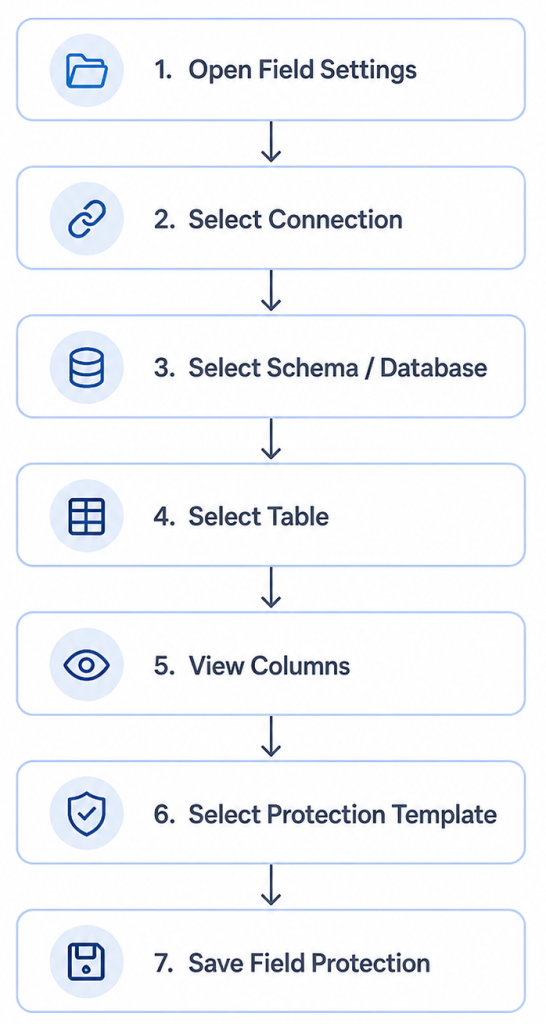

Field Settings Flow

Example Field Protection Configuration

The following example shows field protection configuration for a users table.

Table	Column	Type	Protection
users	id	bigserial	No Setting
users	username	varchar	App_With_Masking
users	first_name	varchar	Direct Masking
users	last_name	varchar	No Setting
users	email	varchar	No Setting
users	password	varchar	No Setting
users	created_at	timestamp	No Setting

In this example, the username field is configured with the App_With_Masking protection template and first_name is configured with the Direct Masking.

Notes

Only configured database connections are displayed in the Field Settings menu.

The available schema, table, and column list depends on the selected database connection and database type.

Protection templates must be created before they can be assigned to database fields.

Use No Setting for fields that do not require protection.

Sensitive fields such as username, email, phone number, identity number, account number, or card number should be reviewed and assigned with the appropriate protection template based on the organization’s security policy.
